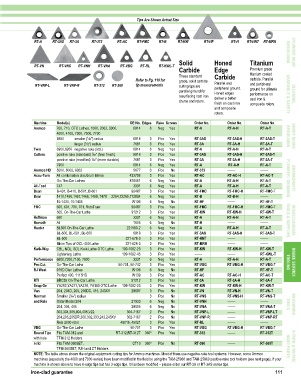

Tips Are Shown Actual Size

RT-A RT-3AS RT-3A RT-373 RT-AC RT-FMC RT-B RT-KW RT-HF RT-H RT-HNT RT-MRH

Solid Honed Titanium REBUILDING CYLINDER HEAD
RT-VN RT-VNS RT-VNH RT-VNA RT-VBG RT-RL RT-KWL-T
Carbide Edge Premium grade
These standard Carbide titanium coated
Refer to Pg. 110 for grade, solid carbide carbide. Parallel
RT-VNP-L RT-VNP-R RT-312 RT-360 tip measurements cutting tips are Parallel and and peripheral
parallel ground for peripheral ground. ground for ultimate
Honed edges
resurfacing cast iron deliver a better performance on ASSEMBLY & SAFETY CLEANING,
drums and rotors. finish on cast iron cast iron &
composite rotors.
and composite
rotors.
Machine Model(s) OE No. Edges Rake Screws Order No. Order No. Order No.
Ammco 700, 710, OTC Lathes, 1000, 2002, 3000, 6914 6 Neg Yes RT-A RT-A-H RT-A-T
4000, 4100, 7000, 7500, 7700
3850 smaller ( ⁄64") radius 6918 3 Pos Yes RT-3AS RT-3AS-H RT-3AS-T REBUILDING SHORT BLOCK
1
larger ( ⁄32") radius 7681 3 Pos Yes RT-3A RT-3A-H RT-3A-T
1
Twin 6900,6950 negative rake (std.) 6914 6 Neg Yes RT-A RT-A-H RT-A-T
1
Cutters: positive rake (standard) ⁄64" (finer finish) 6918 3 Pos Yes RT-3AS RT-3AS-H RT-3AS-T
positive rake (modified) ⁄32" (more durable) 7681 3 Pos Yes RT-3A RT-3A-H RT-3A-T
1
7900 6914 6 Neg Yes RT-A RT-A-H RT-A-T
Ammco HD 5000, 6000, 6002 5677 3 Pos No RT-373 ——— ———
Accu-Turn All combination disc/drum lathes 433796 3 Pos Yes RT-AC RT-AC-H RT-AC-T
On-The-Car Lathes 878051 6 Neg Yes RT-A RT-A-H RT-A-T FLYWHEEL GRINDING CRANKSHAFT/
All-Tool 747 3331 6 Neg Yes RT-A RT-A-H RT-A-T
Bean B-401, B-410, B-501, B-601 90487 3 Pos Yes RT-FMC RT-FMC-H RT-FMC-T
Bear 1410,1466,1467,1468, 1469, 1478 2264,72265,772834 6 Neg Yes RT-B RT-B-H ———
10-1430, 10-1435 W136 6 Neg No RT-HF ——— RT-HF-T
FMC 600, 601, 700, 701, RotoTruer 90487 3 Pos Yes RT-FMC RT-FMC-H RT-FMC-T
505, On-The-Car Lathe 91212 3 Pos Yes RT-KW RT-KW-H RT-KW-T
Hoffman 660 3331 6 Neg Yes RT-A RT-A-H RT-A-T
Horvath All 1605 6 Neg No RT-H ——— ——— TOOLS & SUPPLIES MISCELLANEOUS
Hunter BL300 On-The-Car Lathe 221580-2 6 Neg Yes RT-A RT-A-H RT-A-T
BL-500, BL-501, BL-505 6918 3 Pos Yes RT-3AS RT-3AS-H RT-3AS-T
BL-500 221-678-3 3 Pos Yes RT-HNT ——— ———
Micro Tips of OCL-400 Lathe 221-626-3 3 Pos Yes RT-MRH ——— ———
Kwik-Way CBL, NCL, SDL Kwik-Lathe OTC Lathe 109-1092-23 3 Pos Yes RT-KW RT-KW-H RT-KW-T
Lightening Lathe 109-1092-45 3 Pos Yes ——— ——— RT-KWL-T
Performance 6600,7200,7100, 7600 3331 6 Neg Yes RT-A RT-A-H RT-A-T
Pro-Cut On-The-Car Lathe 50-701, 50-742 3 Pos Yes RT-VBG RT-VBG-H RT-VBG-T TOOLING BRAKE SERVICE
RJ West 915D Disc Lathes W136 6 Neg No RT-HF RT-HF-T
Perfect 400, 1115HD W139 3 Pos Yes RT-AC RT-AC-H RT-AC-T
RTI BRC35 On-The-Car Lathe 91212 3 Pos Yes RT-3A RT-3A-H RT-3A-T
Snap-On YA282,YA277,YA278, YA180 OTC Lathe 109-1092-23 3 Pos Yes RT-KW RT-KW-H RT-KW-T
Van 204, 204D, 205, 205DC, 415, 243XV 29687 3 Pos No RT-VN RT-VN-H RT-VN-T
Norman Smaller ( ⁄64") radius 3 Pos No RT-VNS RT-VNS-H RT-VNS-T
1
and Rels Older Model 204 21933 6 Neg No RT-VNH ——— ———
204, 304, 405 29005 6 Neg No RT-VNA ——— RT-VNA-T TOOLS MEASURING
303,304,305,404,405,V22 304-7167 2 Pos No RT-VNP-L ——— RT-VNP-LT
204,205,205DR,300,302,333,243,243XV 302-7167 2 Pos No RT-VNP-R ——— RT-VNP-RT
Rels 2000 rotor 45016, 45021 3 Pos Yes RT-RL ——— ———
VBG On-The-Car Lathe 50-701 3 Pos Yes RT-VBG RT-VBG-H RT-VBG-T
Round Tips Fits TAM-312 and RT-312,RT-312T 360º Pos Yes RT-312 ——— RT-312T
with hole TFM-312 Holders
solid Fits TAM-360SET, CT10 360º Pos No RT-360 ——— RT-360T
TFM-360SET, RJH and CT Holders HARD PARTS V-TWIN & METRIC
NOTE: The table above shows the original-equipment cutting tips for Ammco machines. Most of them use negative-rake tool systems. However, some Ammco
machines (especially the 4000 and 7000-series) have been modified in the field by using the TAM-25968 and TAM-25969 positive-rake tool holders (see next page). If your
machine is shown above to have 6-edge tips but has 3-edge tips, it has been modified – please order our RT-3A or RT-3AS series tips.
